CHE 318 Lecture 07

Steady State Mass Transfer – Other Geometries

Author

Dr. Tian Tian

Published

January 19, 2026

Note

Slides 👉 Open presentation🗒️
PDF version of course note 👉 Open in pdf
Handwritten notes 👉 Open in pdf

Recap

Examples of steady state diffusion
Applying steady state flux equations to solid and liquid systems
Examples for several special forms
- weight % and average concentration in liquid
- log mean form of concentration / molar fraction
- pressure - solubility - permeability

Learning Outcomes

(Continue from Lecture 06) After today’s lecture, you will be able to:

Identify the difference between diffusion in various geometries
Describe the approximations used for simplifying the soluton for $N_A$
Recall the reason to choose stagnant B solution for spherical diffusion
Solve pseudo-steady state diffusion problem
Analyze solutions of P.S.S solution and calculate diffusivity through experiment

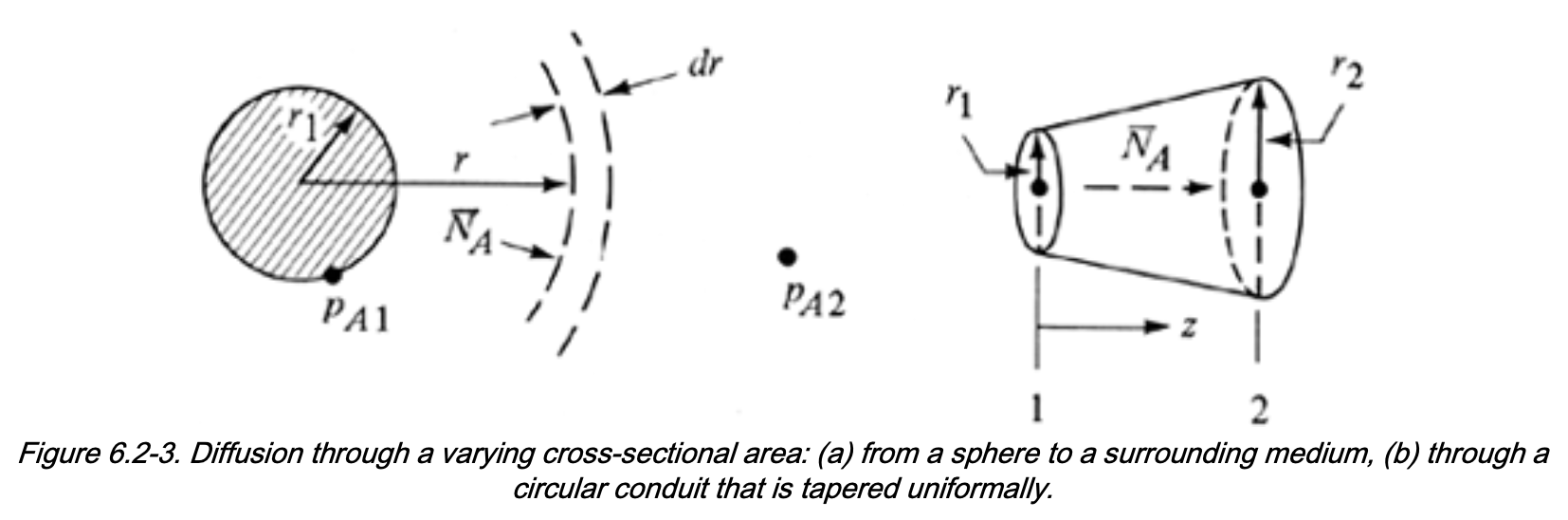

Diffusion Through Varying Cross-Sectional Area

Steady state mass balance

Many industrial applications involde 1D transport with variable area $A(z)$, with mass balance:

\[\begin{align} [\mathrm{In}] - [\mathrm{Out}] &= 0 \\ N_{A1} A_1 - N_{A2} A_2 &= 0 \end{align}\]

Define the total molar flow rate of A:

\[ \overline{N}_A = N_A \, A(z) \]

At steady state: - $\overline{N}_A$ is constant - $N_A$ varies with position if $A(z)$ (or $A(r)$) varies

Applications of Variable-Area Diffusion

This framework can be used to solve diffusion through:

Sphere
Cylinder
Tube with varying diameter
Any system with a known area function $A = A(z)$ or $A=A(r)$

Key ideas

Do not solve as simple 1D Cartesian diffusion
Geometry enters through $A(z)$
Flux adjusts to maintain constant $\overline{N}_A$

Case Study 1: Diffusion Through a Sphere

Typical physical situations

Evaporation of a liquid droplet
Sublimation of a solid organic sphere

Conditions

Steady state
Stagnant B ($N_B = 0$)
Radial symmetry

Governing equation (stagnant B): use the ODE form, not the full 1D Cartesian solution:

\[\begin{align} N_A &= -\frac{D_{AB}}{RT}\frac{d p_A}{dr} + \frac{p_A}{p_T} N_A \\ N_A\!\left(1 - \frac{p_A}{p_T}\right) &= -\frac{D_{AB}}{RT}\frac{d p_A}{dr} \end{align}\]

Stagnant B in a Sphere: Reformulation

For spherical symmetry, $N_A(r)$ varies with $r$ and cannot appear alone in the balance equation L.H.S

Use the constant molar flow rate: \[ \overline{N}_A = N_A(r)\,4\pi r^2 = \text{constant} \]

\[\begin{align} \frac{\overline{N}_A}{4\pi r^2}\,dr &= -\frac{D_{AB}}{RT}\frac{1}{1-p_A/p_T}\,dp_A \end{align}\]

Stagnant B in a Sphere: Final Results

\[\begin{align} \boxed{ \frac{\overline{N}_A}{4\pi} \left(\frac{1}{r_1}-\frac{1}{r_2}\right) = \frac{D_{AB}p_T}{RT} \ln\!\left(\frac{p_T-p_{A2}}{p_T-p_{A1}}\right) } \end{align}\]

This looks very similar to the 1D stagnant B solution in cartesian coordinates. We can simplify it in several occations.

Stagnant B in a Sphere: Far-Field Limit ($r_2 \gg r_1$)

Special case: $r_2 \gg r_1$ (often $r_2 \to \infty$)

Typical examples: - Evaporating liquid droplet - Sublimation of a naphthalene (solid) sphere

From the general spherical stagnant-B result, use the log-mean pressure form:

\[\begin{align} \boxed{ N_{A1} = \frac{D_{AB} p_T}{RT\,p_{Bm}} \left(p_{A1} - p_{A2}\right) } \end{align}\]

Where $N_{A1} = N_A(r=r_1)$. For liquid, another form is often used (considering $p_{Bm}/p_T \approx 1$ and use $p = cRT$)

\[\begin{align} \boxed{ N_{A1} = \frac{D_{AB}}{r_1}\left(c_{A1} - c_{A2}\right) } \end{align}\]

Spherical Diffusion: Thin Shell Limit $r_1 \approx r_2$

Special case: thin membrane / shell
$\Delta r = r_2 - r_1 \ll r_1$

Approximation: \[ \frac{1}{r_1} - \frac{1}{r_2} \;\approx\; \frac{r_2 - r_1}{r_1^2} \;=\; \frac{\Delta r}{r_1^2} \]

Final result:

\[\begin{align} \boxed{ N_{A1} = \frac{D_{AB}}{RT}\frac{p_T}{p_{Bm}} \frac{(p_{A1}-p_{A2})}{\Delta r} } \end{align}\]

This acts like a 1D stagnant-B film with thickness $\Delta r$! (See lecture 3 wooclap question.)

Case 2: Diffusion Through a Non-uniform Area Conduit

Conditions:

Stagnant B
Steady state
Variable radius $r(z)$

Assume linear radius profile: \[ r(z) = r_1 + \frac{(r_2-r_1)}{(z_2-z_1)}(z-z_1) \]

Use the ODE form with $\dot N_A = N_A(z)\,A(z)$ and $A(z)=\pi r(z)^2$:

\[\begin{align} \frac{\dot N_A}{\pi}\int_{z_1}^{z_2}\frac{dz}{\left[r(z)\right]^2} &= -\frac{D_{AB}}{RT}\int_{p_{A1}}^{p_{A2}} \frac{dp_A}{1-p_A/p_T} \end{align}\]

Can you solve for $N_{A1}$?

Examples for Pseudo Steady State (P.S.S)

Example 1: Diffusion Through Stagnant B with Changing Path Length

Adapted from Geankoplis 6.2-3

Water vapor diffuses through a stagnant gas in a narrow vertical tube, dry air is constantly blown at the top of tube.
At time $t$, the liquid level is a distance $z$ from the tube top (i.e., the diffusion path length is $z$).
As diffusion proceeds, the liquid level drops slowly, so $z$ increases with time. The liquid has density $\rho_A$, and molecular weight $M_A$

Derive an expression for the time $t_F$ required for the level to drop such that the diffusion path length changes from $z=z_0$ at $t=0$ to $z=z_F$ at $t=t_F$.

Example 1: solutions

Tip

Use pseudo steady-state assumption
$N_A$ change over time!

Answer \[ t_F = \frac{\rho_A (z_F^2 - z_0^2) RT p_{Bm}}{2 D_{AB} M_A p_{T}} \frac{1}{(p_{A1} - p_{A2})} \]

Example 2: Determine $D_{AB}$ Through Evaporation

Adapted from Griskey 10-2

Sample setup as example 4, a vertical tube of diameter $D=0.01128$ m contains a liquid volatile species $A$ (chloropicrin, $CCl_3NO_2$) evaporating into stagnant air ($B$) at 1 atm. The gas-phase diffusion of $A$ occurs through the air column above the liquid surface.

At $t=0$, the distance from the tube top to the liquid surface is $z_0 = 0.0388$ m, after $t=1$ day, the distance is $z_1 = 0.0412$ m.

Vapor pressure at the interface: $p_{A1} = 3178.3$ Pa
Liquid density: $\rho_A = 1650$ kg/m$^3$
Molecular weight: $M_A = 164.39$ kg/kmol

Use your expression from example 4, determine the binary diffusivity $D_{AB}$ of $A$ in air.

Example 2: solutions

Tip

Pseudo steady state solution and assuming $N_A=\text{const}$ solution differ very little. Why?

Answer:

Pseudo-steady state: $D_{AB} = 8.56\times{}10^{-6}\ \text{m}^2/\text{s}$
$N_A$ constant: $D_{AB} = 8.75\times{}10^{-6}\ \text{m}^2/\text{s}$ ($+2.2\%$ error)

Example 3: P.S.S For Diffusion Through Sphere

Adapted from Geankoplis Ex 6.2-4

A sphere of naphthalene having a radius of 2.0 mm is suspended in a large volume of still air at 318 K and $1.01325 \times{}10^5$ Pa (1 atm). The surface temperature of the naphthalene can be assumed to be at 318 K and its vapor pressure at 318 K is 0.555 mm Hg. The $D_AB$ of naphthalene in air at 318 K is $6.92\times{}10^{−6}\ \text{m}^2/\text{s}$.

Calculate the rate of evaporation of naphthalene from the surface.
Write the expression for the time $t_F$ to evaporate a sphere from radius $r_0$ to $r_F$. The solid density for naphthalene is $\rho$ and molecular weight is $M_A$.
What is the $t_F$ value when the sphere is completely evaporated?

Example 3: solutions

Tip

Similar setup as example 5. $N_A$ is time-dependent

Answer:

$N_A = 9.68\times{}10^{-8}\ \text{kg mol}/\text{m}^2/\text{s}$
Expression for $t_F{r=r_F}$: \[ t_F(r=r_F) = \frac{\rho RT p_{Bm}}{2 M_A D_{AB} p_T} \frac{1}{(p_{A1} - p_{A2})} (r_0^2 - r_F^2) \]
Expression for $t_F{r=0}$: \[ t_F(r=0) = \frac{\rho RT p_{Bm} r_0^2}{2 M_A D_{AB} p_T} \frac{1}{(p_{A1} - p_{A2})} \]

Compare the solutions with Example 4. We can also measure the diffusivity of volatile organic molecules using the sphere evaporation methos!

Summary

Solving diffusion through varying cross-section
Pseudo-steady state solutions to diffusion-evaporation problems
