MATE 664 Lecture 05

Diffusion (II)

Author

Dr. Tian Tian

Published

January 19, 2026

Note

Slides 👉 Open presentation🗒️
PDF version of course note 👉 Open in pdf
Handwritten notes 👉 Open in pdf

Recap of Lecture 04

Key ideas from last lecture:

Driving forces for diffusion
Fick’s 1st and 2nd laws of diffusion
Time-dependent behavior of Fick’s 2nd equation
Temperature-dependency of diffusivity and activation mechanism
Introduction to diffusivity measurements

Learning Outcomes

After today’s lecture, you will be able to:

Recall different types of diffusivities in solids
Describe basic mechanism in interdiffusion systems
Analysis the driving force for various diffusion mechanisms
Analysis of change of reference system in diffusion experiments.

Recap: Fick’s Laws of Diffusion

1st law: steady-state diffusion

\[ \vec{J}_i = -D_i \nabla c_i \]

2nd law: time-dependent diffusion

\[ \frac{\partial c}{\partial t} = D_i \nabla^2 c_i \]

Recap: Different definitions of diffusivities

Self-diffusivity $D^*$
Intrinsic diffusivity $D_i$ (lattice frame / C-frame; $\mathtt{C}$ 👉crystal)
Inter-diffusivity $\tilde{D}$ (laboratory frame / V-frame; $\mathtt{V}$ 👉volume-fixed)

We will see a few examples today for more clarification.

Self-Diffusion: Chemically Homogeneous Material

Isotope tracer experiments
Lattice constraint: \[ c_i + c_i^* + c_v = \text{const} \]
- General “network-constrained” problem
Vacancy concentration often at equilibrium
- Vacancy balance with the source (surface / grain boundary / dislocation)

Flux Relations in Network-Constrained Systems

Flux driven by chemical potential differences (1D)
- Non-radioactive species: \[ J_i = -L_{ii}\frac{\partial (\mu_i - \mu_v)}{\partial x} -L_{i{i}^*}\frac{\partial (\mu_{i^*} - \mu_v)}{\partial x} \]
- Radioactive species: \[ J_{i^*} = -L_{{i^*}{i}}\frac{\partial (\mu_{i} - \mu_v)}{\partial x} -L_{{i^*}{i^*}}\frac{\partial (\mu_{i^*} - \mu_v)}{\partial x} \]
- Vacancy (zero-flux, why?): \[ J_v = 0 \]

Vacancy Equilibrium Assumption

$\mu_v = \text{const}$
$J_v = 0$
total flux balance: \[ J_i + J_i^* + J_v = 0 \]

Resulting Self-Diffusion Flux

Chemical potential gradient: \[ \frac{\partial \mu_{i^*}}{\partial x} = k_B T \frac{1}{c_i}\frac{\partial c_i}{\partial x} \]
Self-diffusion coefficient: \[ D^{*} = k_B T\left(\frac{L_{ii}}{c_i} - \frac{L_{ii^*}}{c_{i^*}}\right) \]

Self-diffusion summary

No macroscopic concentration gradient!
Chemical potential varies locally for $i$ and $i^*$
Follows the Fick equation!

Self-diffusion in a homogeneous binary solution

Binary alloy / solution between 1 and 2
Isotope tracer for 1
Chemically homogeneous, no lattice change during diffusion

Setup for isotope diffusion for binary mixture

Self-diffusion in binary solution: diffusivity

We have self-diffusion for 4 species (1, 1$^*$, 2 and V)
General flux balance still holds
Vacancy concentration is uniform
Still follows Fick’s law.

\[\begin{align} J_{1^*} &= -k_B T \left[ \frac{L_{11}}{c_1} - \frac{L_{11^*}}{c_{1^*}} \right] \frac{\partial c_{1^*}}{\partial x} \\ &= - D_1^* \frac{\partial c_{1^*}}{\partial x} \end{align}\]

Diffusion in Inhomogeneous Materials

Real materials are rarely homogeneous
Concentration gradients exist by construction
Diffusion fluxes differ locally in space
Leads to imbalance of material transport

Historical Observation: Boyle (17th Century)

Robert Boyle observed solid-state diffusion
Zn penetration into Cu coin → brass formation
Clear macroscopic evidence of diffusion in solids
Mechanism not understood until 20th century

Imbalance of Diffusion Fluxes

Consider a binary diffusion couple A–B
If $D_A \neq D_B$
Then intrinsic fluxes differ: \[ J_A^{C} \neq - J_B^{C} \]
Mass transport is locally unbalanced

Vacancy Mechanism and Imbalance

Substitutional diffusion proceeds via vacancies
Site conservation: \[ J_A^{C} + J_B^{C} + J_v^{C} = 0 \]
Unequal atomic fluxes force a vacancy flux
Vacancy flux is opposite to faster species

Vacancy Accumulation Issue

Vacancy flux implies transport of empty sites
But vacancy concentration remains near equilibrium
Fast sources/sinks (dislocations, GBs, surfaces)
Therefore: no long-term vacancy buildup

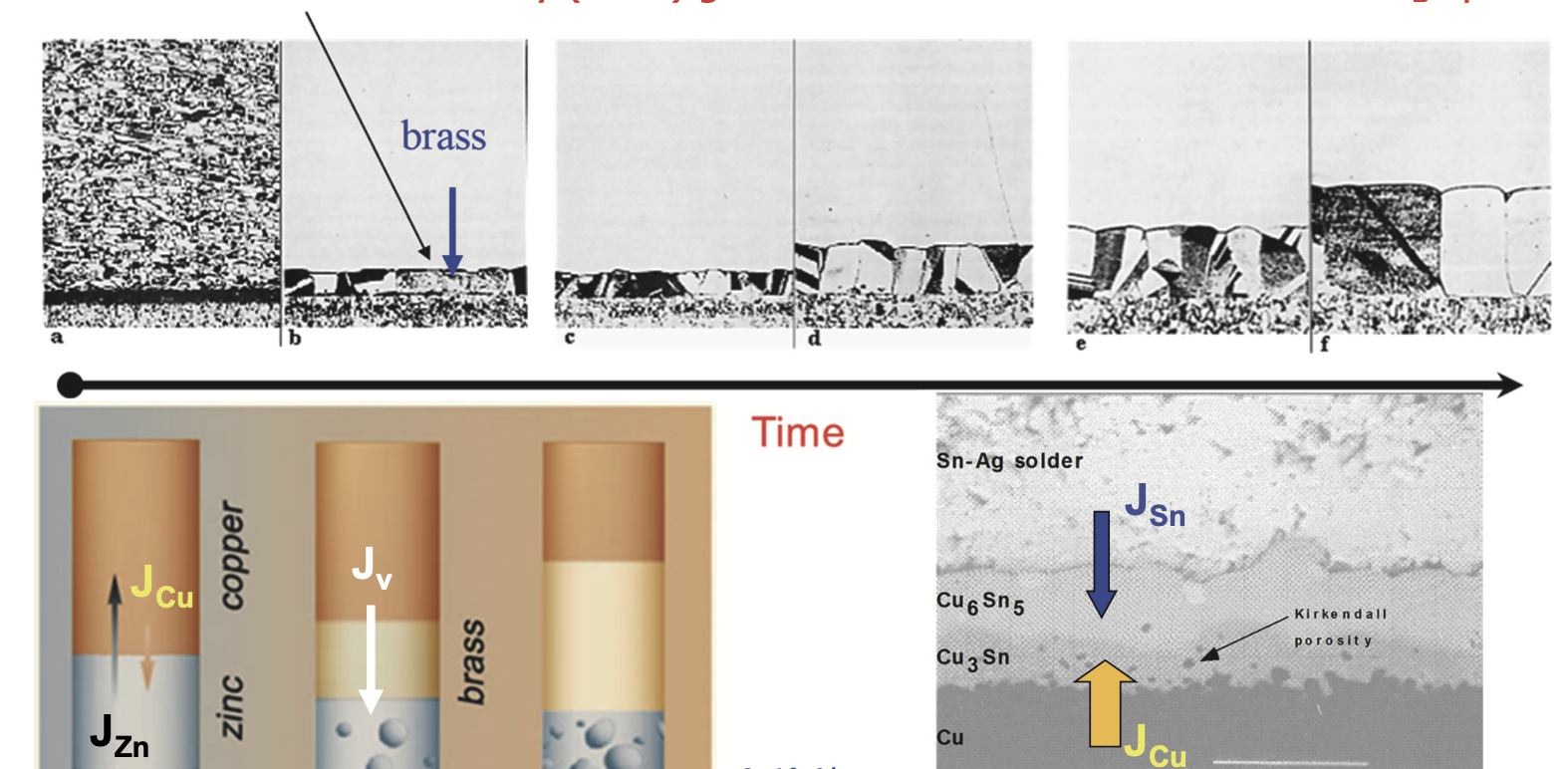

Kirkendall Effect

Unequal intrinsic diffusivities
Net vacancy flux in crystal frame
Lattice planes shift to accommodate vacancy flow
Inert markers move relative to sample ends

C-frame View: Inhomogeneous Materials

Crystal (C) frame attached to lattice sites
Atomic fluxes are Fick-like: \[ J_i^{C} = -D_i \frac{\partial C_i}{\partial x} \]
Vacancy flux is kinematically constrained
Lattice assumed locally intact

Intrinsic Diffusivity

Defined in the crystal frame
Measures diffusion relative to lattice sites
Denoted $D_i$
Depends on:
- jump frequency
- vacancy availability
- thermodynamic factor

\[\begin{align*} J_1^C &= -k_BT [\frac{L_{11}}{c_1} - \frac{L_{12}}{c_2}]\Phi \frac{\partial c}{\partial x} \\ &= -D_1 \frac{\partial c}{\partial x} \end{align*}\]

Relation to Self-Diffusivity

Self-diffusion: tracer in homogeneous system
No net chemical potential gradient
Intrinsic diffusivity reduces to self-diffusivity: \[ D_i = D_i^{*} \, \Phi \]
$\Phi$: thermodynamic factor

Thought Experiment: Vacancy Diffusion (C-frame)

Assume $C_v \approx C_{v,\mathrm{eq}}$
Yet $J_v^{C} \neq 0$
Continuity cannot be satisfied by accumulation
Requires an additional velocity

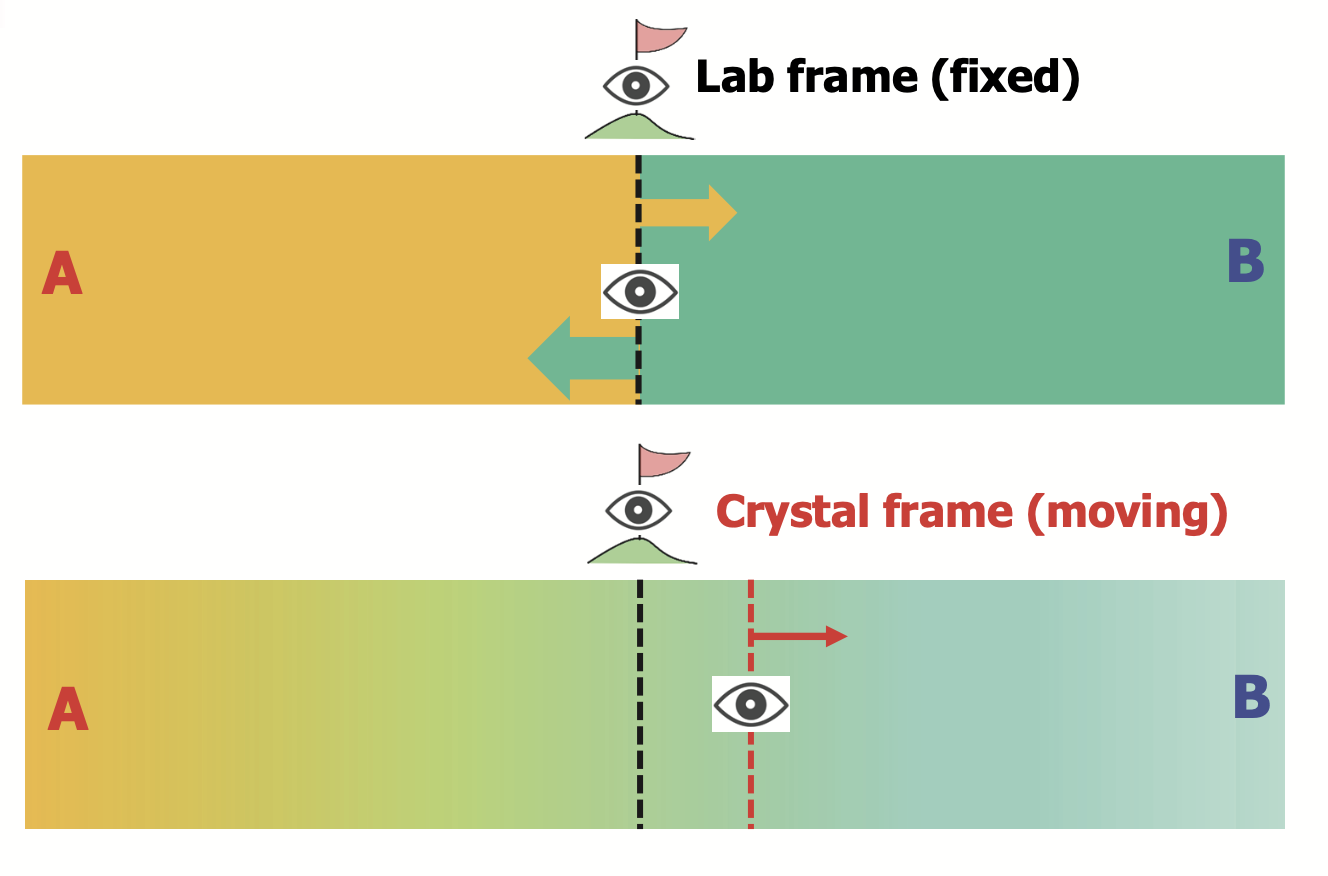

Origin of Lattice Velocity

Transform flux to lab frame: \[ J_v^{\text{lab}} = J_v^{C} + C_v v \]
Impose no net vacancy transport in lab frame: \[ J_v^{\text{lab}} = 0 \]
Lattice velocity: \[ v = -\frac{J_v^{C}}{C_v} \]

Vacancy (V) Frame Basics

V-frame moves with vacancy flux
By definition: \[ J_v^{V} = 0 \]
Atomic fluxes include convective term: \[ J_i^{V} = J_i^{C} + C_i v \]

Governing Equation in V-frame

Impose volume conservation: \[ J_1^{V}\Omega_1 + J_2^{V}\Omega_2 = 0 \]
Leads to single interdiffusion coefficient
Darken equation emerges naturally

Interdiffusivity

Defined in volume-fixed (V) frame
Flux form: \[ J_i^{V} = -\tilde{D} \frac{\partial C_i}{\partial x} \]
Interdiffusivity: \[ \tilde{D} = D_1 X_2 + D_2 X_1 \]

Special Case: Interstitial Diffusion

Interstitial atoms do not occupy lattice sites
No site conservation constraint
No lattice drift required
Interdiffusivity reduces to: \[ \tilde{D} \approx D_{\text{interstitial}} \]

Summary: Types of Diffusivities

Diffusivity	Frame	Meaning
$D_i^{*}$	lattice	tracer / self-diffusion
$D_i$	C-frame	intrinsic diffusivity
$\tilde{D}$	V-frame	interdiffusivity

Summary

Inhomogeneity leads to flux imbalance
Vacancy mechanism enforces site conservation
Lattice velocity resolves vacancy continuity
Choice of reference frame is essential
Kirkendall effect is a frame-dependent phenomenon
