MATE 664 Lecture 19

Colloidal Stability: DLVO Theory

Author

Dr. Tian Tian

Published

March 16, 2026

Note

Slides 👉 Open presentation🗒️
PDF version of course note 👉 Open in pdf
Handwritten notes 👉 Open in pdf

Learning outcomes

After this lecture, you will be able to:

Explain why a thermodynamically unstable colloid may still remain dispersed
Describe the physical origin of van der Waals attraction and double-layer repulsion
Use the Poisson-Boltzmann equation and its boundary conditions for a charged interface
Recall the Debye length and the role of ionic strength
State the DLVO interaction potential and interpret the barrier height
Connect DLVO theory to the RLCA picture from last lecture

Recap: why did RLCA become slow?

Last lecture, we introduced a kinetic barrier through the external potential $V_T$:

\[\begin{align} F = 4\pi r^2 D_{11} \left( \frac{dN}{dr} + \frac{N}{k_B T}\frac{dV_T}{dr} \right) \end{align}\]

and the Fuchs stability ratio

\[\begin{align} W = \frac{\beta_{11}^{\mathrm{DLCA}}}{\beta_{11}^{\mathrm{RLCA}}} \end{align}\]

The missing question

When we introduce the external potential $V_T$ (and $W$) we show the RLCA rate is slower, but why?

what determines $V_T(r)$?
why does a barrier appear?
how can salt destroy the barrier?

Today: physical origin of kinetic stability

Derjaguin, Landau, Verwey, and Overbeek (DLVO) theory: For charged colloids, the total interaction potential comes from two competing effects:

attractive van der Waals interaction
repulsive electrostatic double-layer interaction

DLVO theory combines them into one total potential.

\[\begin{align} V_T(h) = V_{\mathrm{vdW}}(h) + V_{\mathrm{el}}(h) \end{align}\]

where $h$ is the surface-to-surface separation.

Stability statement revisited

From Lecture 18, a lyophobic colloid remains only metastable. The dispersed state has higher free energy than the aggregated state, but aggregation may be delayed if particles must overcome a barrier.

Key idea:

thermodynamics favors aggregation
kinetics may prevent close contact
barrier height should be compared with $k_B T$

What should the DLVO curve look like?

A typical interaction curve contains (how do they come)?

a deep primary minimum at very short range
a repulsive maximum at intermediate separation
sometimes a shallow secondary minimum at larger separation

Topic 1: electrostatic double layer around a charged particle

A charged solid surface in electrolyte attracts counterions and repels coions. This creates the electrical double layer:

Electrostatic potential from Poisson equation

The potential field $\psi$ in a dielectric medium satisfies Poisson equation (one of Maxwell’s equations)

\[\begin{align} \nabla^2 \psi = -\frac{\rho}{\varepsilon_r \varepsilon_0} \end{align}\]

$\rho$: local charge density
$\varepsilon_r \varepsilon_0$: permittivity of the liquid

Ion distribution from Boltzmann statistics

For ion species $i$ with valence $z_i$, the equilibrium concentration follows

\[\begin{align} n_i = n_{i,\infty} \exp \left( -\frac{z_i e \psi}{k_B T} \right) \end{align}\]

Hence the charge density $\rho$ in Poisson equation is

\[\begin{align} \rho = \sum_i z_i e n_i = \sum_i z_i e n_{i,\infty} \exp \left( -\frac{z_i e \psi}{k_B T} \right) \end{align}\]

Linking this to the Poisson equation gives the Poisson-Boltzmann (PB) equation

Poisson-Boltzmann equation

Combining Poisson and Boltzmann gives the nonlinear PB equation

\[\begin{align} \nabla^2 \psi = -\frac{1}{\varepsilon_r \varepsilon_0} \sum_i z_i e n_{i,\infty} \exp \left( -\frac{z_i e \psi}{k_B T} \right) \end{align}\]

For a symmetric electrolyte and planar geometry, this becomes the standard 1D form.

Solution to the PB equation: planar geometry and boundary conditions

Take $x$ normal to a flat charged surface. Far from the surface, the solution must recover bulk electroneutrality:

\[\begin{align} \psi(x \rightarrow \infty) &= 0 \\ \frac{d\psi}{dx}(x \rightarrow \infty) &= 0 \end{align}\]

At the surface, two common boundary conditions are used.

Boundary condition 1: constant surface potential

If the surface potential can be predetermined (like zeta-potential measurements), then

\[\begin{align} \psi(0) = \psi_0 \end{align}\]

This is often used when adsorption or surface chemistry keeps the interfacial potential nearly fixed.

Boundary condition 2: constant surface charge

Using Gauss law, the electric field at the surface satisfies

\[\begin{align} \sigma = -\varepsilon_r \varepsilon_0 \frac{d\psi}{dx}\Big|_{x=0} \end{align}\]

This is the constant-charge description, applicable to:

more natural if surface groups are fixed (e.g. chemically modified)
important when particle approach changes the local field

Solution to Poisson-Boltzmann: Debye-Hückel linearization

If the potential is not too large,

\[\begin{align} \left| \frac{z_i e \psi}{k_B T} \right| \ll 1 \end{align}\]

then the PB equation can be linearized, often called the Debye-Hückel (DH) approximation

\[\begin{align} \exp \left( -\frac{z_i e \psi}{k_B T} \right) \approx 1 - \frac{z_i e \psi}{k_B T} \end{align}\]

Potential profile in Debye-Hückel approximation

The linearized equation in DH approximation becomes

\[\begin{align} \frac{d^2 \psi}{dx^2} = \kappa^2 \psi \end{align}\]

We know from the diffusion concepts it is like a steady-state Fick’s second law, but with external potential. The solution is a nice exponential decay of potential $\psi$

\[\begin{align} \psi(x) = \psi_0 e^{-\kappa x} \end{align}\]

Debye-Hückel approximation: screening length

One consequence of the DH approximation is that the electrostatic screening is related with the charge concentrations in the liquid:

\[\begin{align} \kappa^{-1} &= \left( \frac{\varepsilon_r \varepsilon_0 k_B T} {e^2 \sum n_{i, 0} z_i^2} \right)^{1/2} \\ &= \left( \frac{\varepsilon_r \varepsilon_0 k_B T} {2 e^2 N_a I} \right)^{1/2} \end{align}\]

where $N_a$ is the Avogadro number, and $I = 1/2 \sum_{i} z_{i}^{2} c_{i, 0}$ is the ionic strength.

high ionic strength $I$ $\rightarrow$ shorter screening length
low ionic strength $I$ $\rightarrow$ longer-range repulsion

In-depth view of the screening length

From the Debye-Hückel Approximation, we typically can use the following handy rule:

\[ \kappa = 3.29 \sqrt{I} = 3.29 \sqrt{\frac{1}{2}\sum c_{i, 0} z_i^2}\qquad \text{[nm]}^{-1} \]

when the solute concentration $c_{i, 0}$ is in mol/L. For example, for a $10^{−3}$ M, 1:1 electrolyte, $1/\kappa = 9.6$ nm.

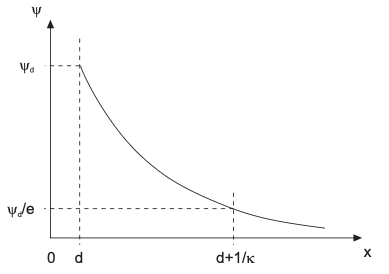

Shape of Debye-Hückel approximation

Where can I find the screening length $\kappa^{-1}$?

Poisson-Boltzmann in high potential regime: Guy-Chapman equation

The Debye–Hückel approximation assumes small potential

\[\begin{align} \left|\frac{ze\psi}{k_B T}\right| \ll 1 \end{align}\]

For a higher surface potential, the Gouy-Chapman (GC) equation is more accurate (exact solution for symmetric electrolyte.

\[\begin{align} \frac{d^{2} \psi}{dx^{2}} &= -\frac{zc_{0}e}{\varepsilon_{o} \varepsilon_{r}} \left[ \exp(-\frac{ze\psi}{k_{\mathrm{B}}T}) - \exp(\frac{ze\psi}{k_{\mathrm{B}}T})\right]\\ &= \frac{2zc_{0}e}{\varepsilon_{o} \varepsilon_{r}} \sinh\left(\frac{ze\psi}{k_{\mathrm{B}}T}\right) \end{align}\]

Solution to the GC equation is:

\[ \frac{\tanh(ze\psi/4k_{\mathrm{B}}T)}{\tanh(ze\psi_{0}/4k_{\mathrm{B}}T)} = \exp(-\kappa x) \]

Repulsion between two charged plates

When two charged surfaces approach, their diffuse layers overlap. You can imagine the charge-redistribution occurs between the two surfaces. Let’s first assume the charged surfaces are flat surfaces, the overlay will cause osmotic pressure.

The osmotic pressure

In an ideal electrolyte solution, the local osmotic pressure follows the Donnan equation

\[ P_{\mathrm{osmotic}}(x) = k_B T \left(c_{+}(x) + c_{-}(x)\right) \]

Force balance inside the double layer

Consider a differential volume element $dV$ located at position $x$.

The differential osmotic force acting on the element is

\[\begin{align} dF_{\mathrm{osmotic}} = \frac{dP_{\mathrm{osmotic}}}{dx} dV \end{align}\]

Solving the parallel charge plate: osmotic pressure

The equilibrium requires the electrostatic force and osmotic force must balance at every position.

\[\begin{align} \frac{dP_{\mathrm{osmotic}}}{dx} &= \varepsilon_0\varepsilon_r \frac{d^2\psi}{dx^2} \frac{d\psi}{dx} \\ &= \frac{\varepsilon_0\varepsilon_r}{2} \frac{d}{dx} \left[ \left(\frac{d\psi}{dx}\right)^2 \right] \end{align}\]

Since we know the solution to the Poisson-Boltzmann equation, integrating this will give us the total interaction energy.

Repulsion between charged planes: final result

The repulsive potential energy $W_{\mathrm{R}}$ per unit area between two charged particles at distance $h$ is then calculated as:

\[\begin{align} W_{\mathrm{R}}(h) &= -\int_{\infty}^{h} \frac{F_{\mathrm{R}}}{A} \mathrm{d} h' \\ &= 64 k T c_{0} \kappa^{-1} \Lambda_{0}^{2} e^{-\kappa h} \end{align}\]

where $\Lambda_{0} = \tanh(\frac{z e \psi_{0}}{4k_{\mathrm{B}}T})$. Note we need to adjust for the particle curvature if they are spheres.

Why do we care about curvature?

The plate result is not yet the particle result. Real colloids are spherical, so we must convert planar interaction into curved-particle interaction. Derjaguin approximation calculates the electrostatic repulsion between sphere particles by:

\[\begin{align} V(h) = 2\pi R_{\mathrm{eff}} W(h) \end{align}\]

where $W(h)$ is the interaction free energy per unit area between plates. This is our final solution

Effective curvature radius

For two particles of radii $a_1$ and $a_2$,

\[\begin{align} R_{\mathrm{eff}} = \frac{a_1 a_2}{a_1+a_2} \end{align}\]

For equal particles, $a_1=a_2=a$:

\[\begin{align} R_{\mathrm{eff}} = \frac{a}{2} \end{align}\]

large particles have stronger total interaction
curvature links plate theory to colloid kinetics

Topic 1: final form

The repulsion between two spherical particles separated by $h$ under the Derjarguin approximation is

\[ V_{\mathrm{R}}^{\mathrm{ss}}(h) = 64 \pi k_B T c_{0} R \kappa^{-2} \Lambda_{0}^{2} e^{-\kappa h} \]

Such approximation is valid when:

$R \gg h$, i.e. near the junction the surfaces from two particles are still considered as planar.
$h \gg \kappa^{-1}$, i.e. small overlap between EDLs.

Topic 2: van der Waals attraction

The attractive branch comes from fluctuating dipoles. At the molecular level, we have interaction between two particles following the $r^{-6}$ rule

\[\begin{align} u(r) = -\frac{C}{r^6} \end{align}\]

Summing over all pair interactions between two bodies gives the macroscopic van der Waals interaction. The material dependence is collected into the Hamaker constant $A_H$.

Simple van der Waals result for curved particles

For two spheres at small separation $h \ll a_1, a_2$,

\[\begin{align} V_{\mathrm{vdW}}(h) = -\frac{A_H R_{\mathrm{eff}}}{6h} \end{align}\]

For equal particles with radius $a$,

\[\begin{align} V_{\mathrm{vdW}}(h) = -\frac{A_H a}{12h} \end{align}\]

attraction becomes very strong at small $h$
this is the origin of the primary minimum

DLVO total interaction potential

Putting both parts from repulsive electrostatics and attractive vdW together gives the central DLVO expression:

\[\begin{align} V_T(h) = -\frac{A_H R_{\mathrm{eff}}}{6h} + B R_{\mathrm{eff}} e^{-\kappa h} \end{align}\]

DLVO kinetic barrier

This single curve explains both stabilization and aggregation.

Barrier criterion for kinetic stability

The key quantity is the maximum barrier height $V_{T,\max}$ in the DLVO curve.

Stable regime

\[\begin{align} V_{T,\max} \gg k_B T \end{align}\]

particle collisions usually do not lead to sticking.

Unstable regime

\[\begin{align} V_{T,\max} \lesssim k_B T \end{align}\]

then particles can cross the barrier and aggregate.

This is the physical origin of RLCA.

Salt effect and critical coagulation concentration

Increasing salt compresses the double layer:

\[\begin{align} \kappa \propto I^{1/2} \end{align}\]

Consequences:

repulsion becomes shorter-ranged
barrier height decreases
aggregation rate increases

At a sufficiently high salt level, the barrier vanishes. This defines the critical coagulation concentration.

DLVO theory in the language of last lecture

In Lecture 18 we wrote

\[\begin{align} \beta_{11}^{\mathrm{RLCA}} = \frac{\beta_{11}^{\mathrm{DLCA}}}{W} \end{align}\]

and

\[\begin{align} W \approx \frac{1}{2\kappa a} \exp \left( \frac{V_{T,\max}}{k_B T} \right) \end{align}\]

Now we can interpret this clearly:

DLVO gives the potential $V_T(h)$
the barrier maximum controls $W$
$W$ then controls the slowdown from DLCA to RLCA

What DLVO theory captures well

electrostatic stabilization of lyophobic colloids
salt-induced destabilization
barrier-controlled transition from stable to aggregating
connection between interparticle forces and kinetic rate constants

It is the simplest quantitative framework for charged colloidal stability.

What is not included in simple DLVO?

DLVO is powerful, but not complete. Missing effects include:

steric stabilization by adsorbed polymers
hydration forces at very short range
charge regulation during particle approach
non-spherical rough particles
specific ion effects

These extensions are often needed in real polymer and ceramic systems.

Summary

A colloid may be thermodynamically unstable but kinetically stable
DLVO theory combines attraction and repulsion
van der Waals attraction scales roughly as $-1/D$
double-layer repulsion decays as $e^{-\kappa D}$
the barrier height relative to $k_B T$ determines whether aggregation is DLCA-like or RLCA-like
increasing salt lowers the barrier and promotes coagulation
