MATE 664 Lecture 22

Multiscale Simulation for Kinetics of Materials (III): Molecular Dynamics (MD)

Author

Dr. Tian Tian

Published

March 25, 2026

Note

Slides 👉 Open presentation🗒️
PDF version of course note 👉 Open in pdf
Handwritten notes 👉 Open in pdf

Learning outcomes

After this lecture, you will be able to:

Recall the basic idea of molecular dynamics as time integration of atomic motion
Identify the main components of an MD simulation, including forces, integrators, and ensembles
Describe how thermostats and timesteps affect MD simulations
Interpret the role of interatomic potentials in molecular dynamics

Announcement: class presentation

Date: April 8 14:00 - 17:30
Location: HC 2-14 (same classroom)
Format: slide presentation or your choice of media. Pre-recorded video allowed if unable to attend
Length: 10 min presentation + 2 min questions

Recap: Monte Carlo (MC) and Kinetic Monte Carlo (KMC) methods

(Metropolis) MC: sampling equilibrium configuration
KMC: sampling configuration change over (pseudo) time scale
Major assumption: average / integral of states can be performed by random sampling
Probability ratio (NVT)

\[\begin{align} p_i \propto e^{-E_i/k_B T} \end{align}\]

Recap: potential energy comparison in MC

The central parameter in MC / KMC simulations is the estimation of probability, or equivalent the potential energy $E_i$ (or $U_i$).

Remaining questions:

where do we get these energy values?
if we do need to calculate force $- \dfrac{\partial E}{\partial x}$, what can we get?
can we get continuous motion instead of discrete states “hopping”?

Historical review: atomic hypothesis

Excerpt from Richard Feynman’s physics lecture at Caltech

I believe it is the atomic hypothesis (or the atomic fact, or whatever you want to call it) that all things are made out of atoms – little particles that move around, are in perpetual motion, attract each other when they are some distance apart, but repel being squeezed into one another. In that one sentence you’ll see there’s an enormous amount of information about the world if just a little imagination and thinking is applied.

Representing large system with small domain

Pioneered by Bernal (UCL) in the 1950s, use ball bearing to study the liquid-solid phase transformation.

Hard-sphere models for materials simulations

Simulating defects with ball bearings!

Another way down the road: molecular dynamics (MD)

Instead of studying the systems in configuration space ($\{\mathbf{r}_i, \cdot \}$), MD studies materials in a phase space ($(\{\mathbf{r}_i, \mathbf{p}_i), \cdot \}$), more naturally representing the Newton’s equation

\[\begin{align} \frac{d \mathbf{r}_i}{dt} &= \frac{\mathbf{p}_i}{m_i} \\ \frac{d \mathbf{p}_i}{dt} &= - \nabla_{r_i} U(\mathbf{r})= \mathbf{F}_i \end{align}\]

Time dependency now appears!

MD = energy + dynamics

Energy

potential energy surface (PES)
bonding physics
force evaluation
material specificity

Dynamics

Newton’s equations
time integrator
thermostat / barostat
trajectory sampling

no MD without both parts
wrong energy or wrong dynamics both lead to wrong physics (butterfly effect)

Dissecting the MD method

Deterministic method: state of the system at any future time can be predicted from its current state (with caution)
MD cycle for one step:
- Force acting on each atom is assumed to be constant during the time interval
- Forces on the atoms are computed and combined with the current positions and velocities to generate new positions and velocities a short time ahead
MD simulations provide a molecular level picture of structure and dynamics → structure-property relationships (SPR)

Timescale in MD

Physical world

Bond vibrations - 1 fs
Collective vibrations - 1 ps
Conformational transitions - ps or longer
Enzyme catalysis - microsecond/millisecond
Ligand Binding - micro/millisecond
Protein Folding - millisecond/second

MD Simulation

Integration time step - 1 femtosecond
Set by fastest varying force
Accessible timescale about 10 nanoseconds

Topic 1: the dynamics

We wanted to talk about the “control” part of the MD

how do we turn forces into trajectories?
how do we know the simulation system represents the set ensemble?
how to get quantities from MD simulation?

A bit of statistical mechanics: averaging quantity in MD

In MD simulation a macroscopic quantity is averaged over time

\[\begin{align} \langle A \rangle_{\text{time}} = \frac{1}{\tau}\int_0^\tau A(t)\,dt \end{align}\]

The ergodic assumption gives that for an infinitely long enough simulation, every configuration in the phase space should eventually be visited. (Like MC, but we evolve continuously in time)

\[\begin{align} \langle A \rangle_{\text{ens}} = \int d\mathbf r^N d\mathbf p^N \, A(\mathbf r^N,\mathbf p^N)\,\rho(\mathbf r^N,\mathbf p^N) \end{align}\]

Time average = Ensemble average

What quantities are we interested in MD?

Thermodynamic

temperature $T$
pressure $P$
energy $E$

Structural

radial distribution function $g(r)$
coordination number $N_c$
defect structure / order parameter $c_i(\mathbf r)$

Kinetic

diffusivity $D$
viscosity $\eta$
relaxation time $\tau$
conductivity $\mu$

Ensembles: how to describe your system?

In a MD setup, we usually want to fix a few macroscopic quantities while let others to give our statistical average

Relate to thermodynamic relations

\[ dU = T\,dS - P\,dV + \mu\,dN \]

common MD ensembles:
- NVE (micro-canonical)
- NVT (canonical)
- NPT (isothermal- isobaric)

Comparison between ensembles

NVE

isolated system
fixed $N,V,E$
Probability $\rho_{NVE} \propto \delta(H-E)$

NVT

heat bath
fixed $N,V,T$
$\rho_{NVT} \propto e^{-H/k_B T}$

NPT

heat + pressure bath
fixed $N,P,T$
$\rho_{NPT} \propto e^{-(H+PV)/k_B T}$

MD: how to advance in time?

Just solve the coupled dynamic equations

\[\begin{align} \dot{\mathbf r}_i &= \mathbf v_i \\ m_i \dot{\mathbf v}_i &= \mathbf F_i \end{align}\]

At each time step:

compute forces
update positions and velocities
apply ensemble control if needed
collect observables

The Verlet algorithm

We can of course use $t \to t + \Delta t$ (the forward Euler) method, but maybe not so stable.

Verlet algorithm: use Taylor expansion

\[\begin{align} \mathbf r_i(t+\Delta t) = 2\mathbf r_i(t)-\mathbf r_i(t-\Delta t) +\mathbf a_i(t)\Delta t^2 + O(\Delta t^4) \end{align}\]

Requires 2 time steps to advance

\[\begin{align} \mathbf v_i(t) = \frac{\mathbf r_i(t+\Delta t)-\mathbf r_i(t-\Delta t)}{2\Delta t} \end{align}\]

Can now go back in time!

Velocity Verlet: most common practical form

\[\begin{align} \mathbf r_i(t+\Delta t) &= \mathbf r_i(t)+\mathbf v_i(t)\Delta t+\frac{1}{2}\mathbf a_i(t)\Delta t^2 \\ \mathbf v_i\!\left(t+\frac{\Delta t}{2}\right) &= \mathbf v_i(t)+\frac{1}{2}\mathbf a_i(t)\Delta t \\ \mathbf a_i(t+\Delta t) &= \frac{\mathbf F_i(t+\Delta t)}{m_i} \\ \mathbf v_i(t+\Delta t) &= \mathbf v_i\!\left(t+\frac{\Delta t}{2}\right)+\frac{1}{2}\mathbf a_i(t+\Delta t)\Delta t \end{align}\]

MD: choice timestep

$\Delta t$ must resolve the fastest motion

too large:

unstable integration
broken energy conservation

too small:

too expensive

MD: typical values for timesteps

metal MD: $\sim 1$ fs
molecules with constrained bonds: $\sim 2$ fs
coarse motion / rigid modes: up to $\sim 10$ fs
ab initio MD: often smaller than 1 fs

MD: how to maintain ensemble?

NVE: integrate Newton’s law only
NVT: add thermostat
NPT: thermostat + barostat

Ideas for thermo- and barostats:

thermostat controls kinetic energy
barostat allows box size / shape to fluctuate

Comparison between thermostats

Berendsen

fast equilibration
weakly rescales velocities
does not generate exact canonical ensemble

Nosé-Hoover

extended dynamical system
samples canonical ensemble better
may oscillate if poorly tuned

Langevin

friction + random force
good temperature control
can distort dynamics if damping is too strong

Topic 2: the energy

How do you get the energy and forces?
Which energy form is good?
Can we get energy from data?

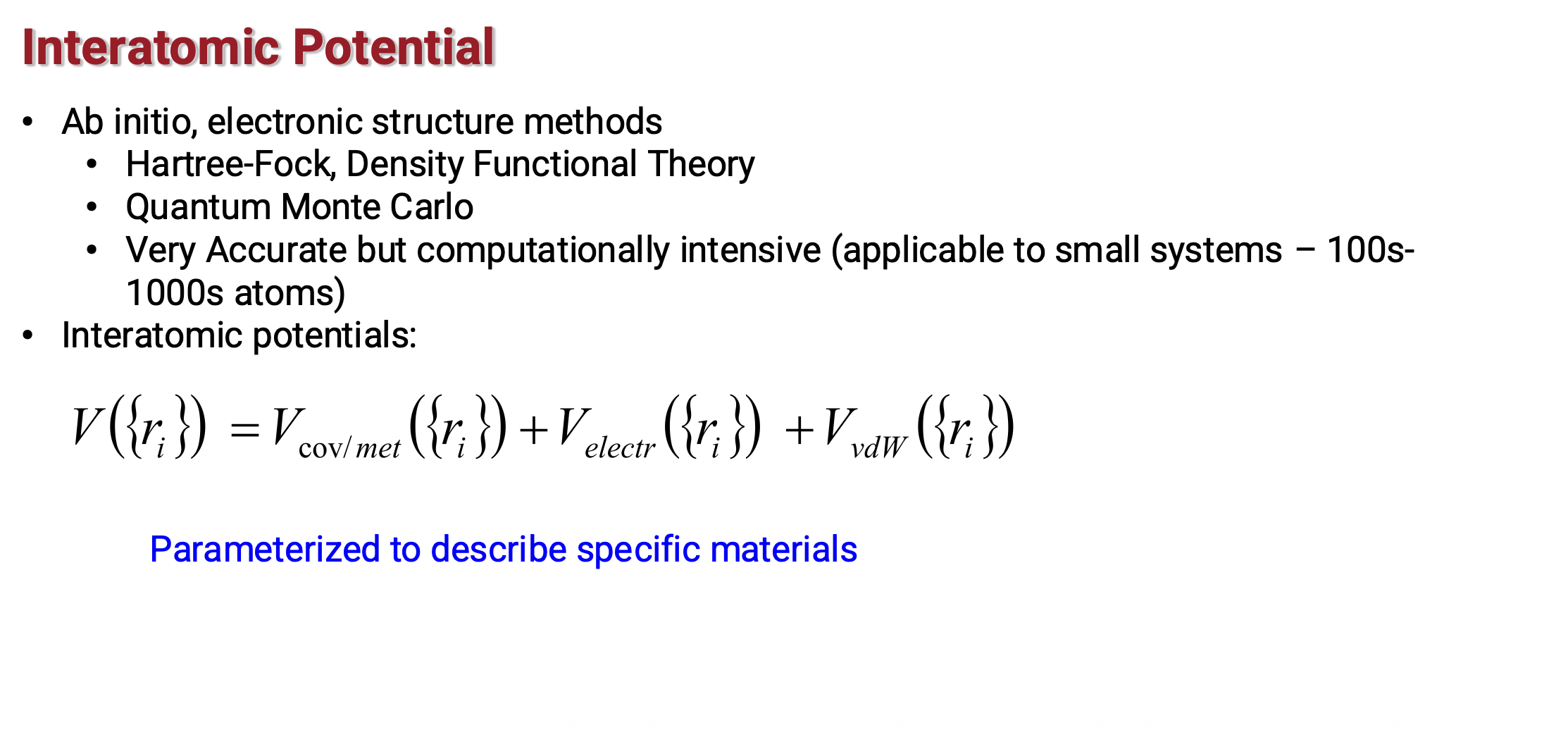

Potential energy in MD (1)

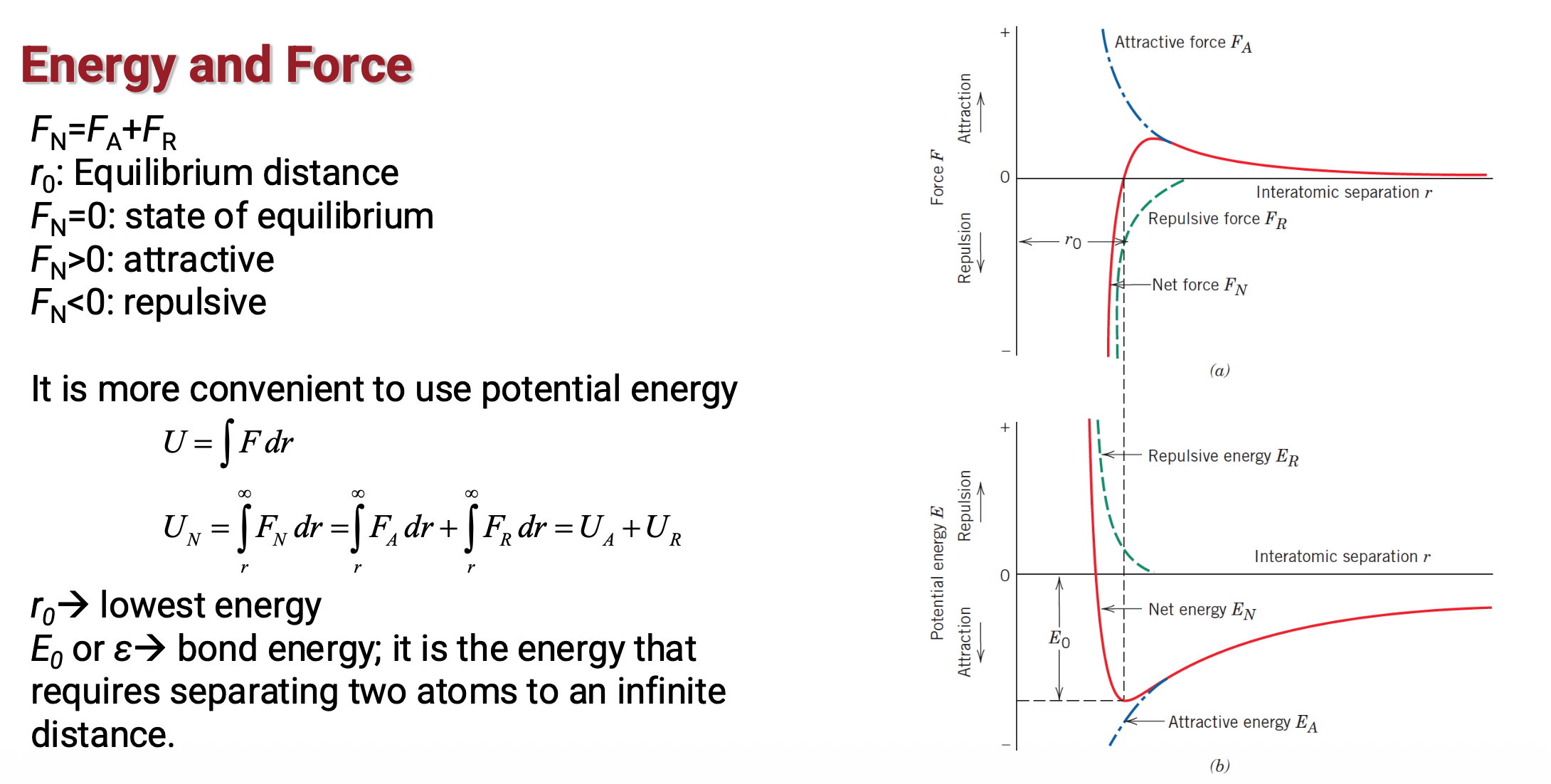

Potential energy in MD (2)

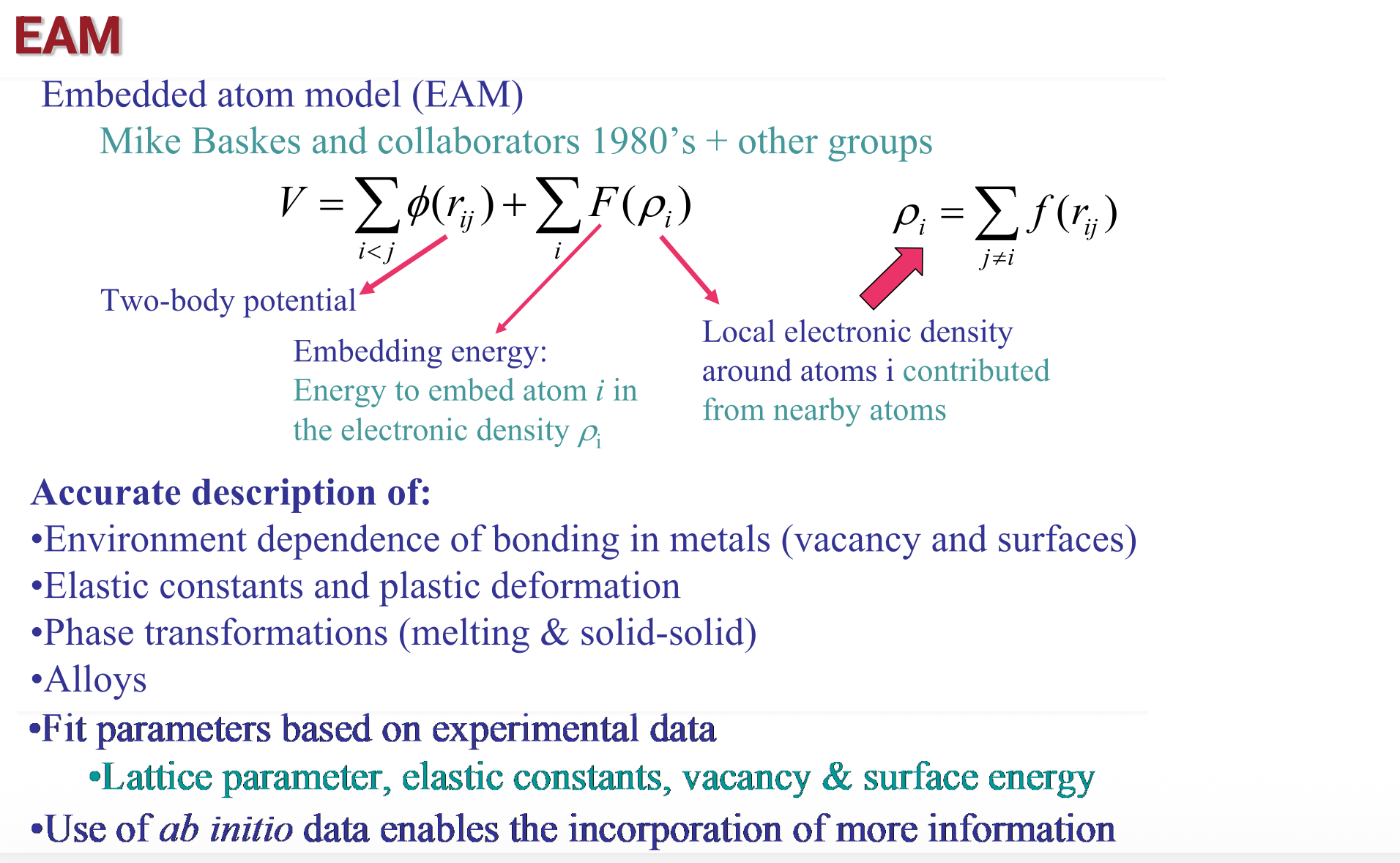

Potential energy in MD (3)

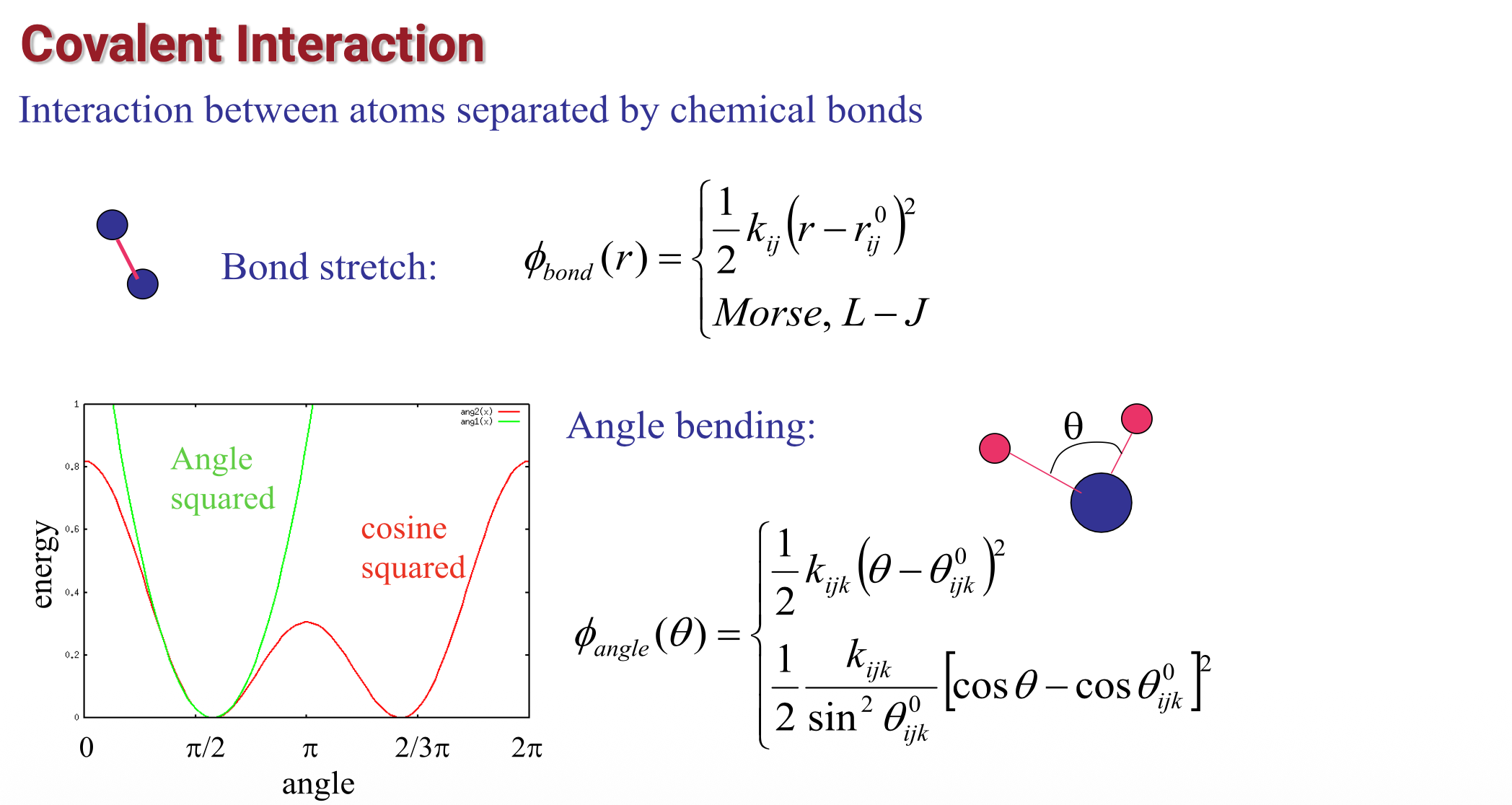

Potential energy in MD (4)

More about the atomic hypothesis

Still from Feynman:

If, in some cataclysm, all of scientific knowledge were to be destroyed, and only one sentence passed onto the next generations of creatures, what sentence would contain the most information in the fewest words? I believe it is the atomic hypothesis that all things are made of atoms – little particles that move around in perpetual motion, attracting each other when they are a little distance apart, but repelling upon squeezed into one another. In that sentence, you will see, there is enormous amount of information about the world, if just a little imagination and thinking are applied

Example of data-driven potential

Can we use data to train potential? Examples from John Kitchin (CMU)

Atomic Simulation Environment (ASE) as a easy python wrapper over the atomistic calculator

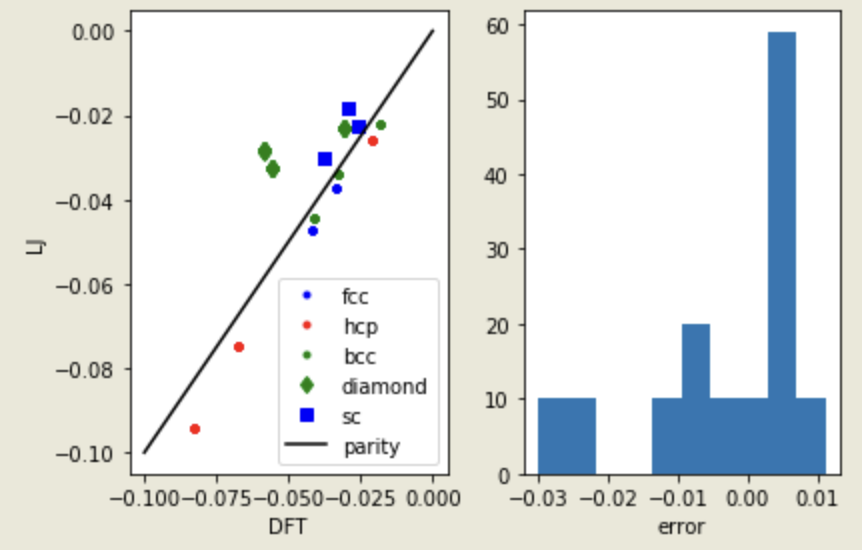

Bulk argon energies calculated in different lattice type, volume etc.
Fit the polynomial LJ potential using the DFT dataset!

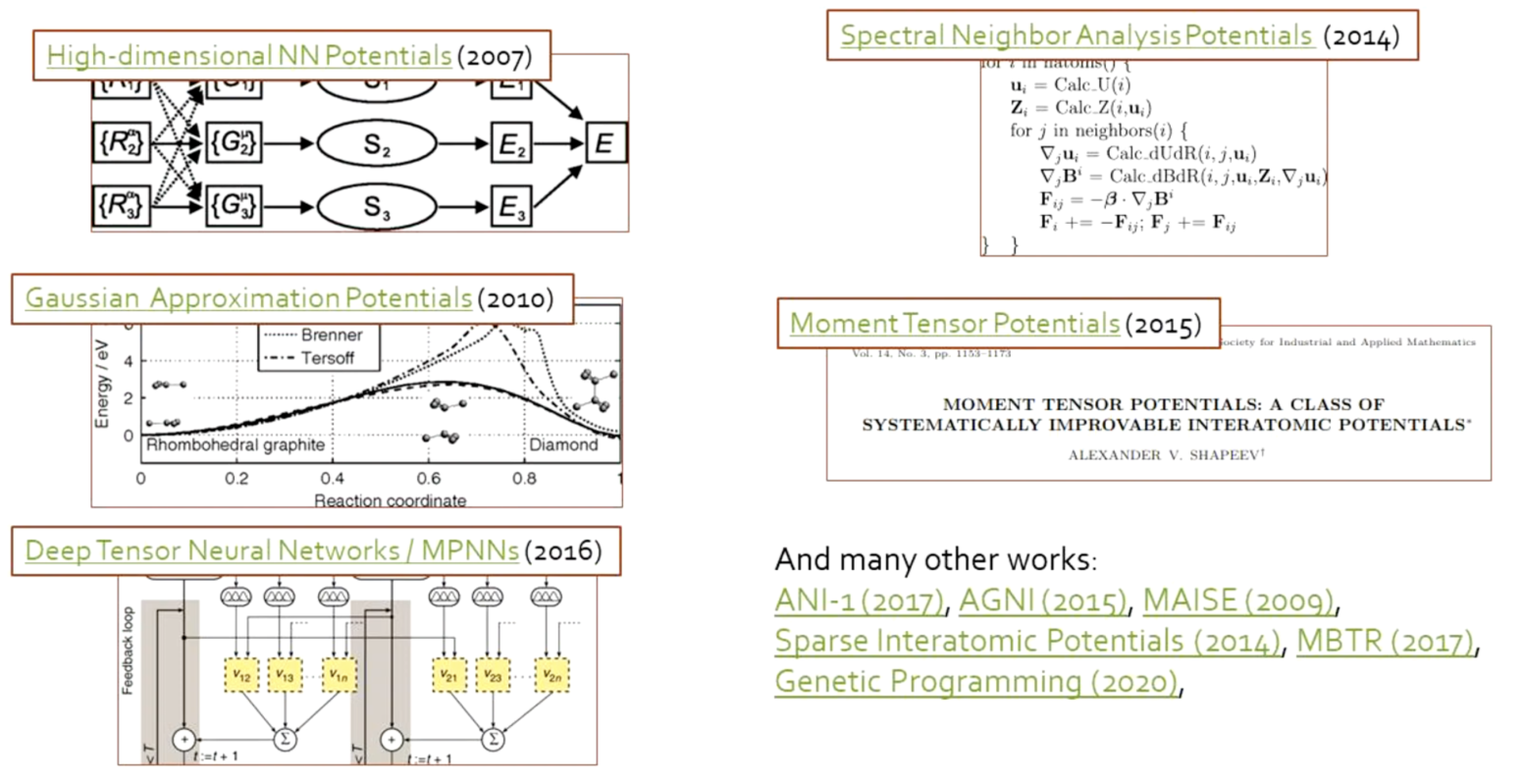

Interatomic potentials: from polynomials to machine learning

Summary

Molecular dynamics evolves atomic positions and momenta using Newton’s equations
MD simulations require interatomic forces, numerical integration, and ensemble control
The choice of potential strongly affects what material behavior an MD model can represent
